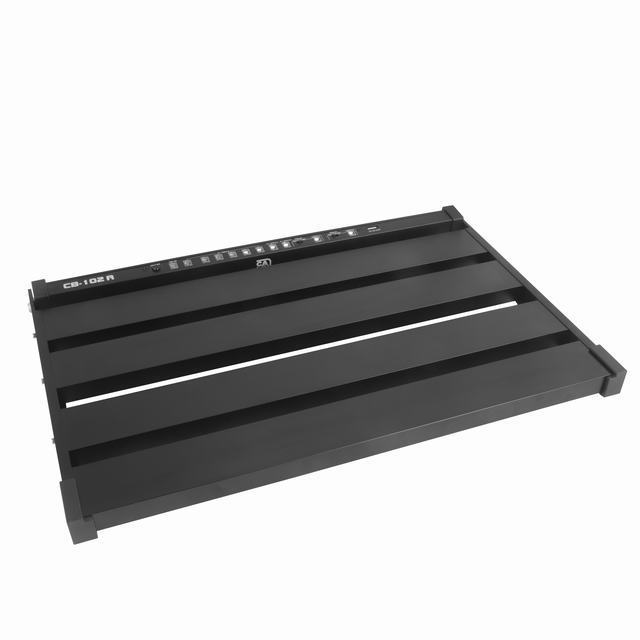

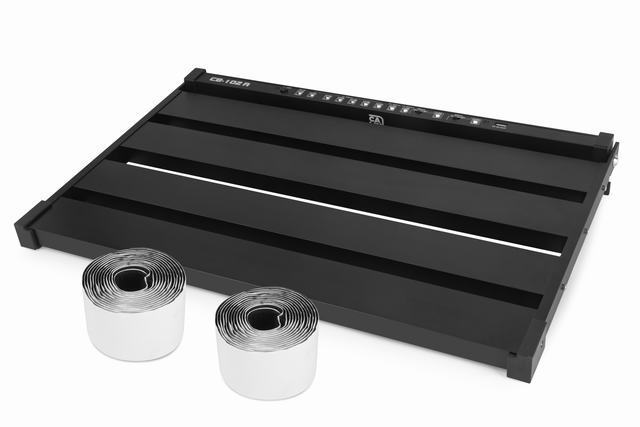

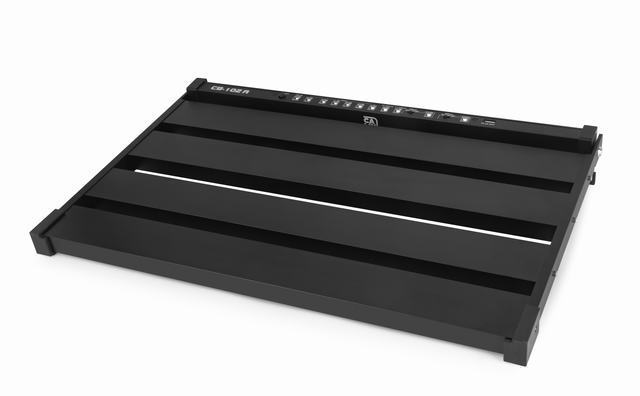

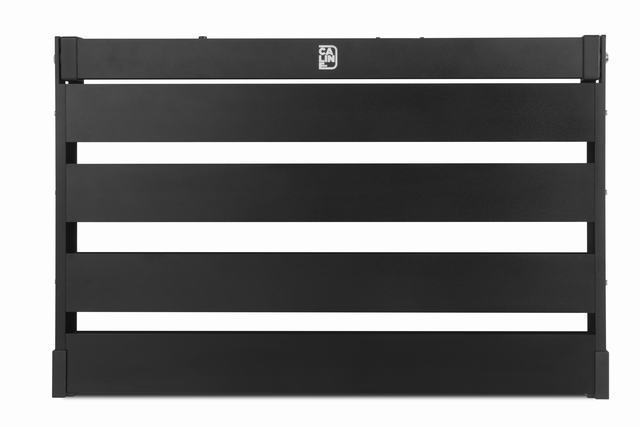

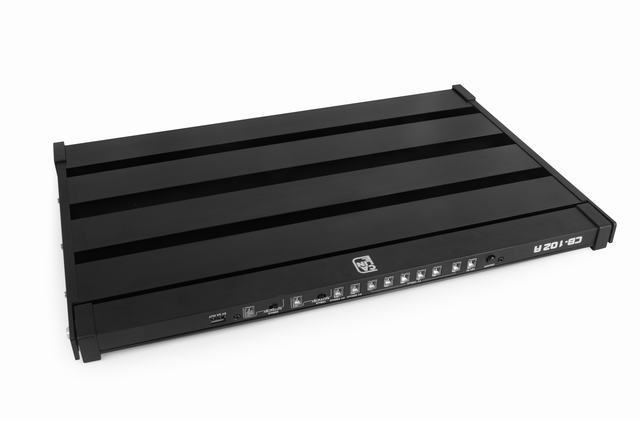

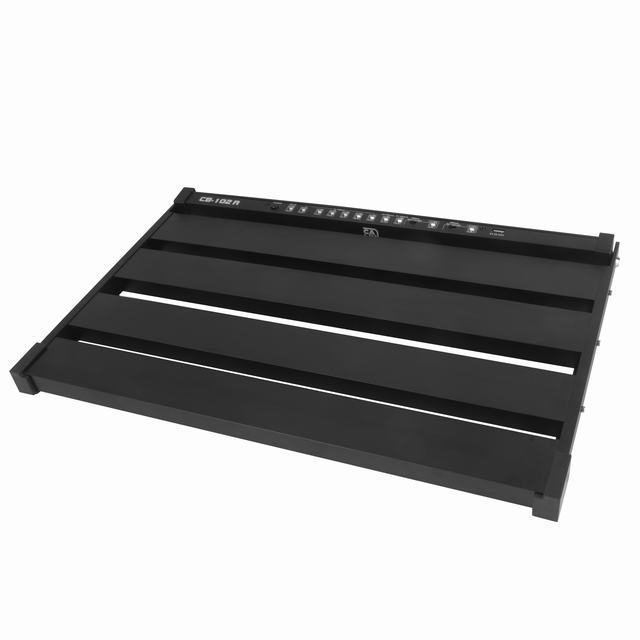

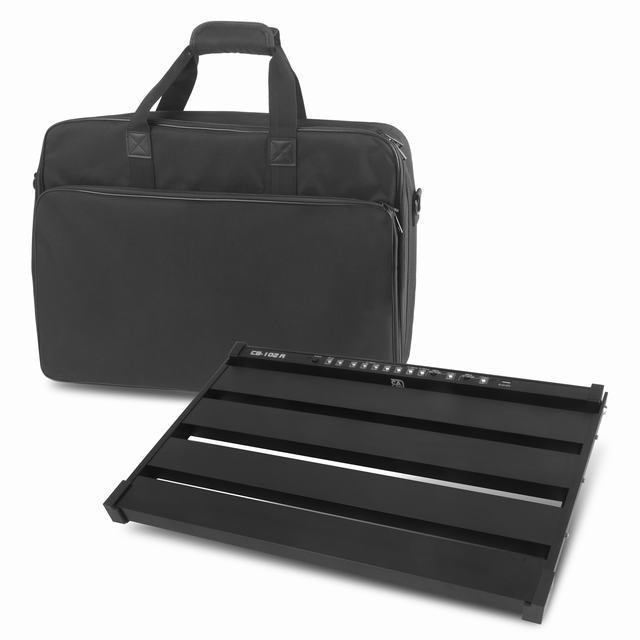

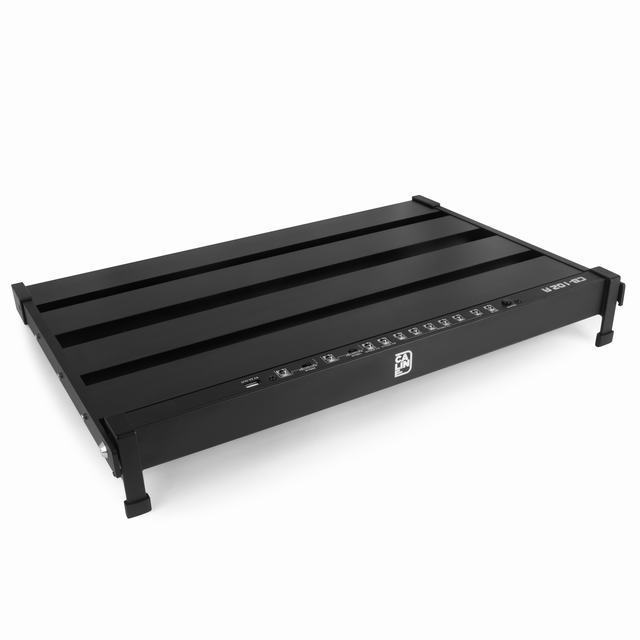

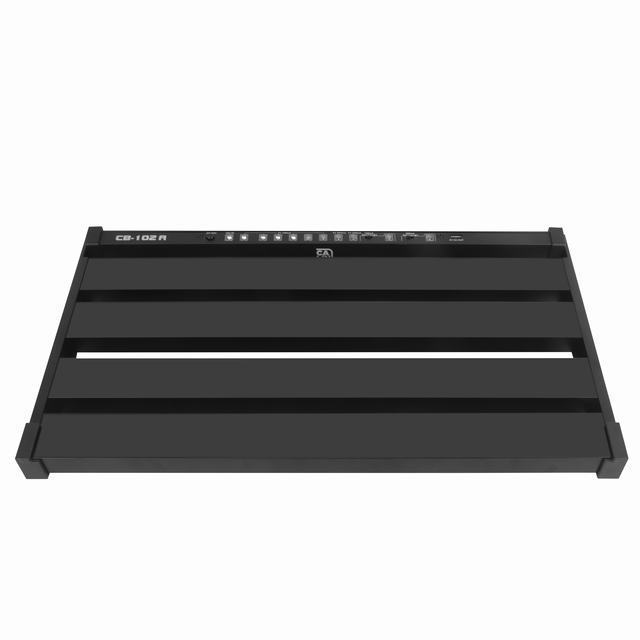

The uniquely designed Pedalboard includes a built-in foldable power supply to allow easy and tidy connection to the pedal chain. The power supply is fitted neatly on the front underside of the pedalboard to allow cable access. The Pedalboard is a sturdy and lightweight construction and includes a padded gigbag for safe and easy transportation.

The power supply has 10 outputs for powering a variety of different effects including Drum effect, multi effect and digital delay pedals.

The Circuit has anti-ground noise and anti-interference treatment， to give you a 100% clear sound.

Each output is isolated and with short circuit protection which is indicated by the LED lights. When it is giving power the light is on, If a circuit failure occurs the light will go out.

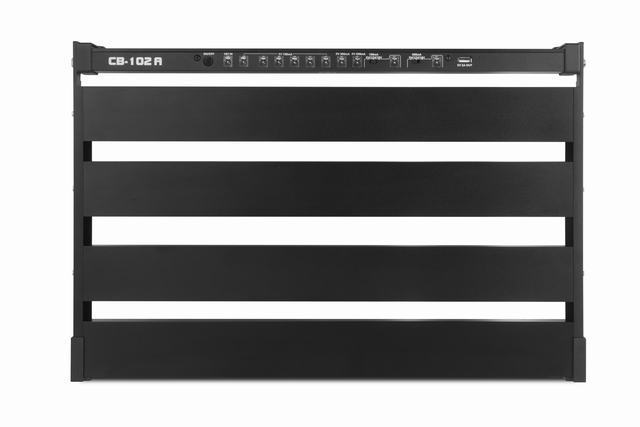

10 Outputs:

6 * 9V DC @ 100mA   1* 9V DC @ 300mA

1* 9V DC @ 500mA

1 *9V/12V/18V DC @ 100mA

1 * 9V/12V/18V DC @ 300mA

5V 2A outputs for led light, phone charging

Pedalboard Size：48*35.3*2.1cm   pedalboard weight: 2.14kg

Package size: 58*44*11CM            Package Weight：4KG

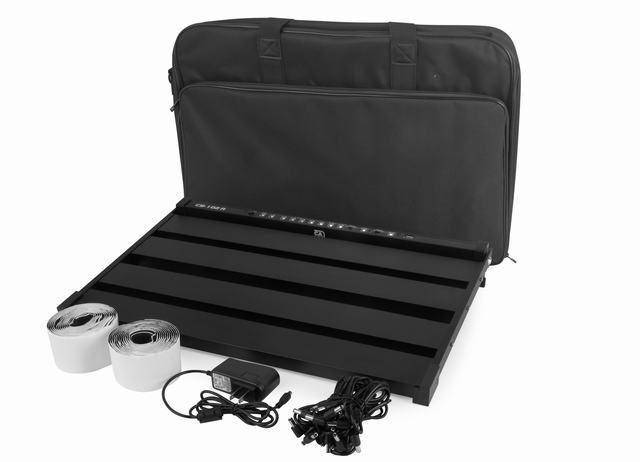

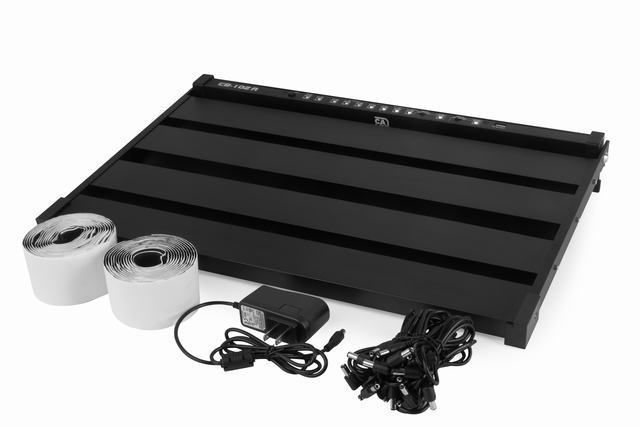

Package includes:

1*Powered pedalboard      1*adaptor 18V 1A

10* Power DC cables        2*polarity reversal cables

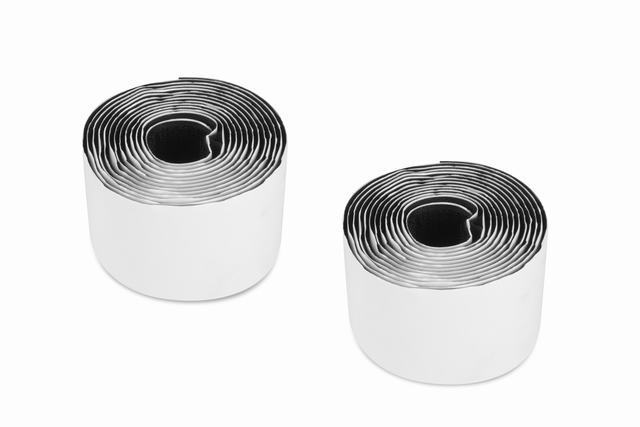

1*manual      1*velcro tape set

1*carry bag
